Generate and Configure a Barcode in Moon Invoice

Overview

Moon Invoice allows you to generate barcodes for your products and customize barcode settings based on your business requirements. You can either add a product manually or import a product from your existing product list before generating barcodes.

---------------------------------

Generate a Barcode

Follow the steps below to generate a barcode for your product.

Step 1:  Open the Generate Barcode Screen

1. Open the Moon Invoice app.

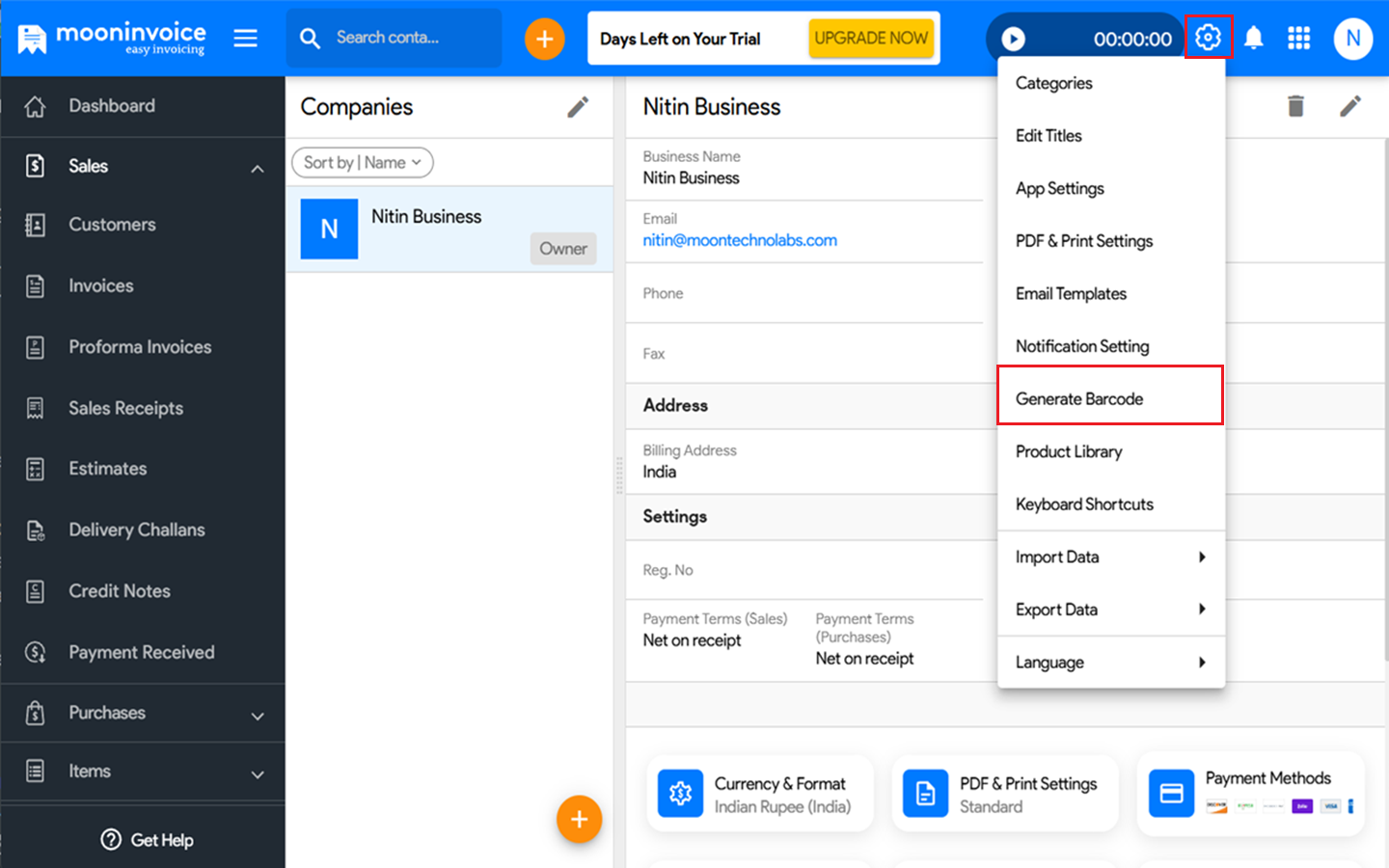

2. Navigate to Settings → Generate Barcode.

---------------------------------

Step 2:  Add or Import a Product

1. On the Generated Barcode screen, add a product using one of the following options:

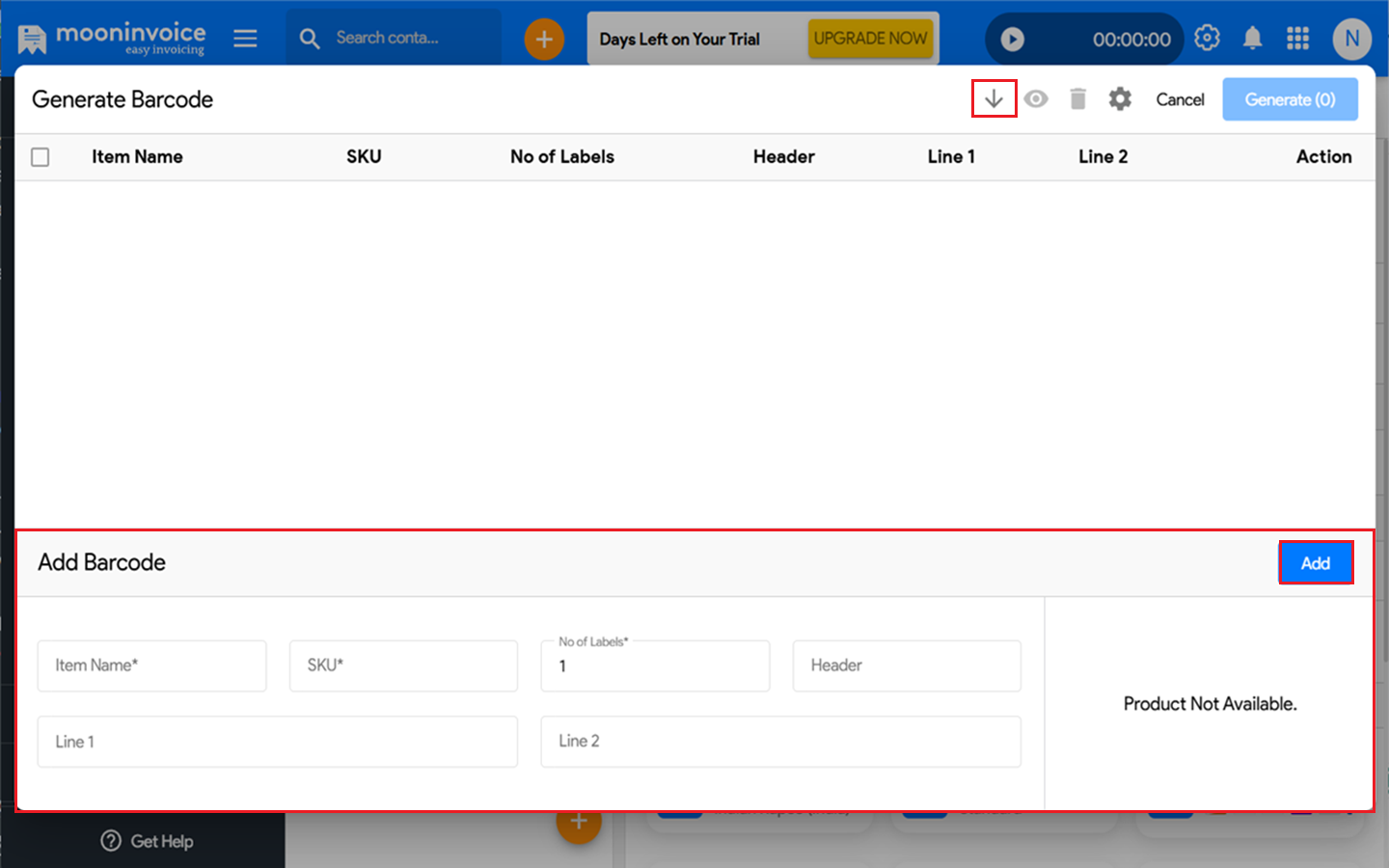

• Add a barcode to manually add a product.

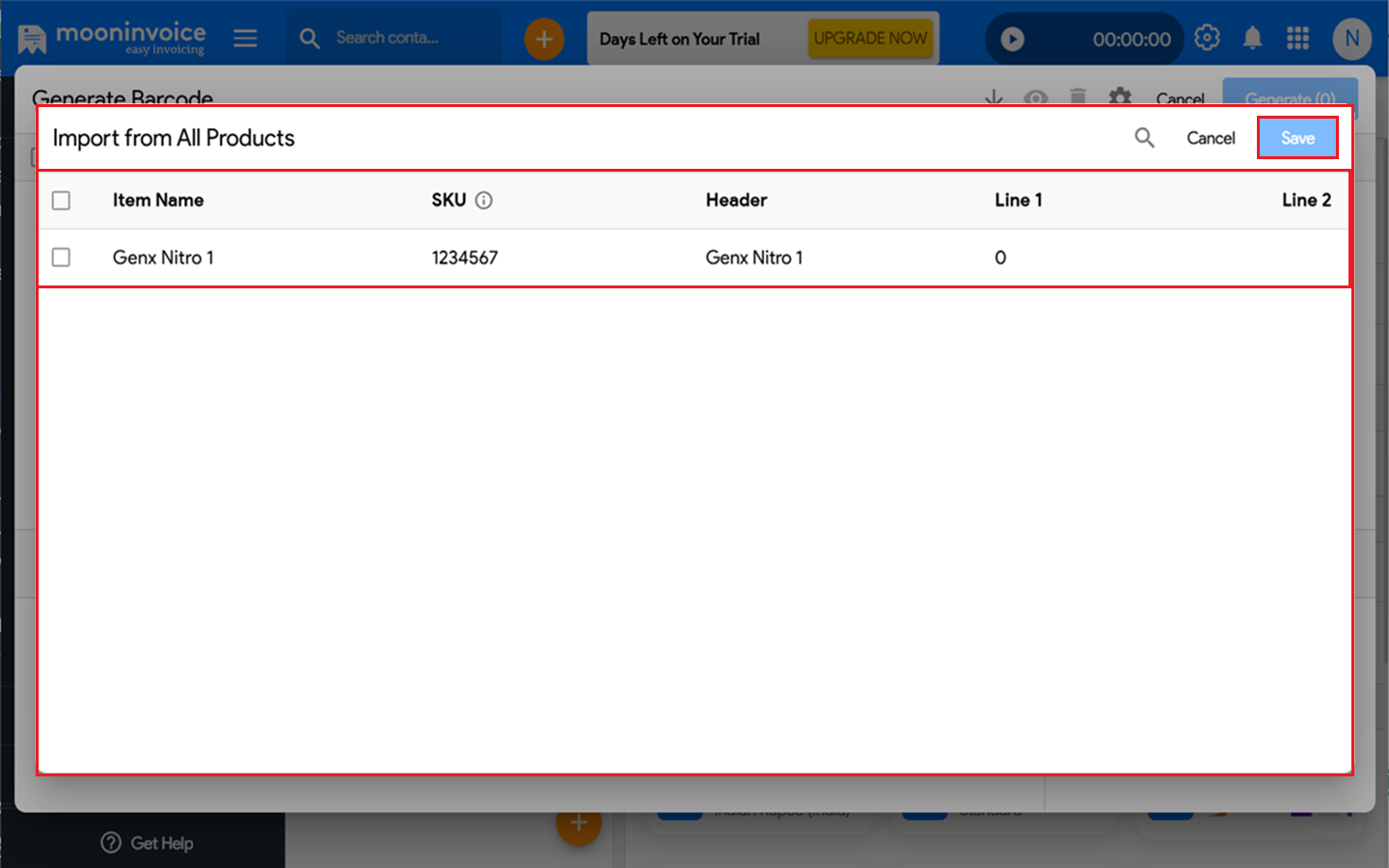

• Import from All Products to select an existing product.

2. Select the product you want to generate a barcode for.

 ---------------------------------

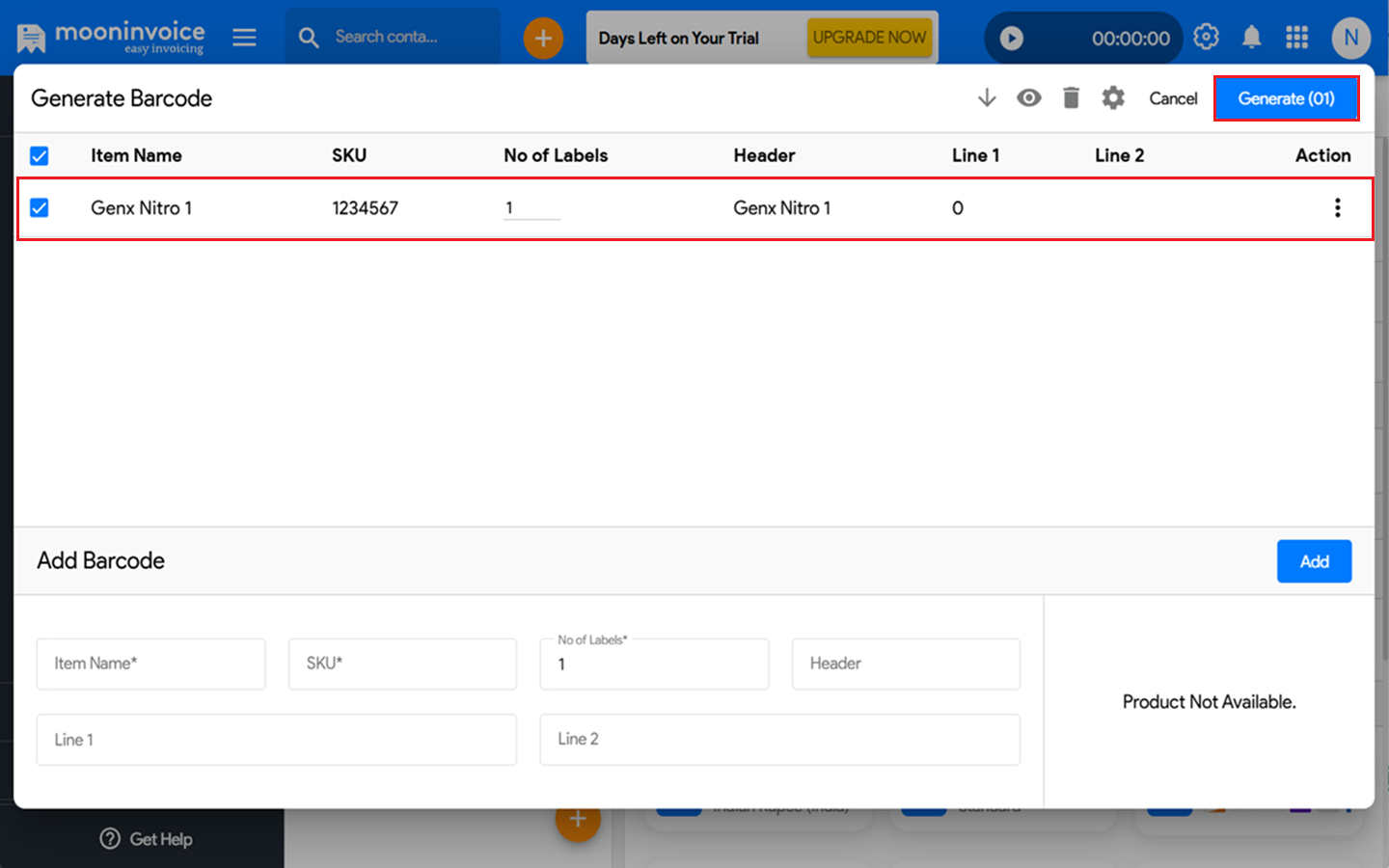

Step 3:  Generate the Barcode

1. Select the checkbox next to the product.
2. Click Generate.

---------------------------------

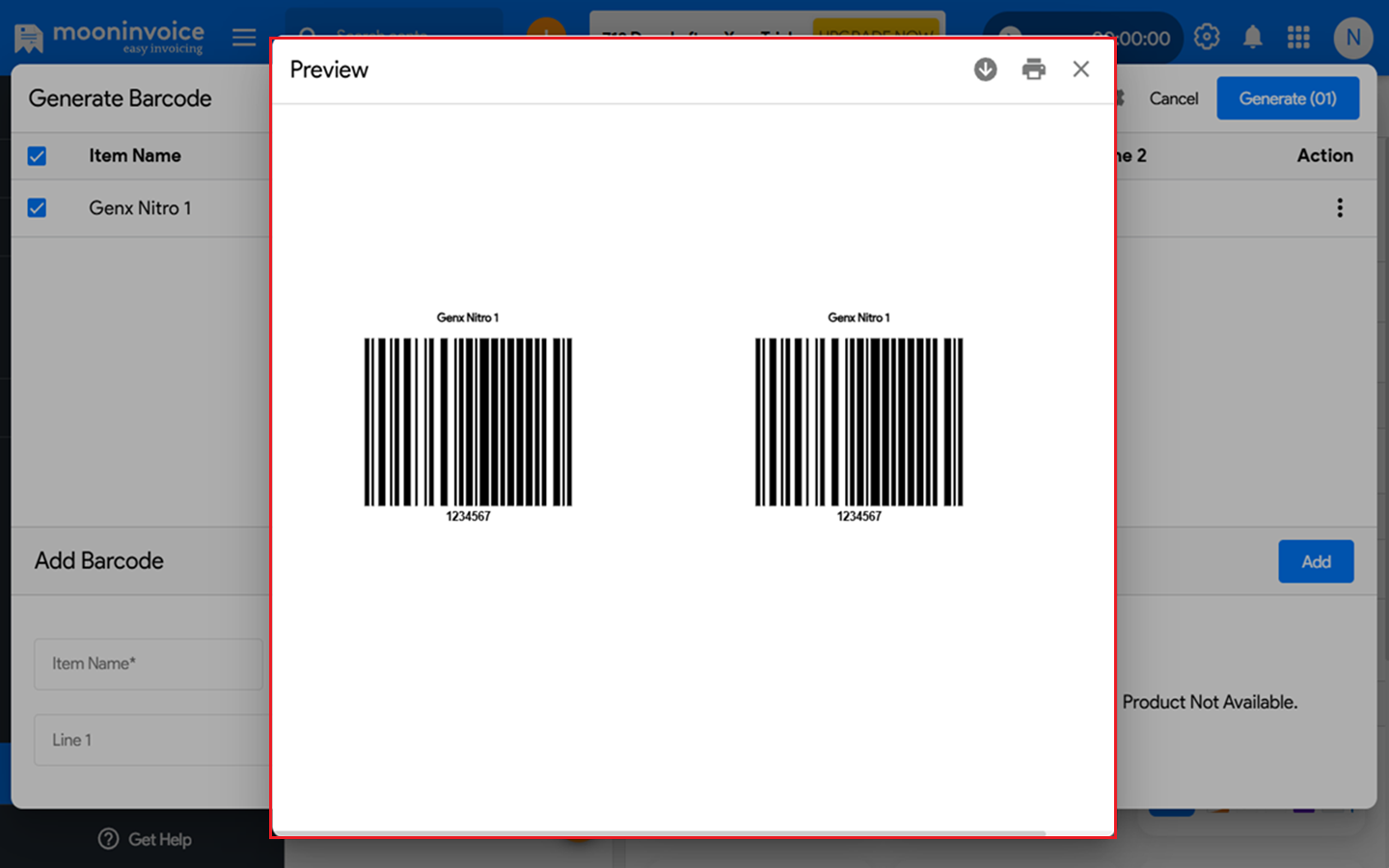

Step 4:  Preview the Barcode

1. Review the generated barcode in the preview windows.
2. Use the available options to print or download the barcode if required.

---------------------------------

Configure Barcode Settings

Follow the steps below to customize barcode settings.

Step 1:  Open the Generate Barcode Screen

1. Open the Moon Invoice app.
2. Navigate to Settings → Generate Barcode.

---------------------------------

Step 2:  Open Configure Barcode Settings

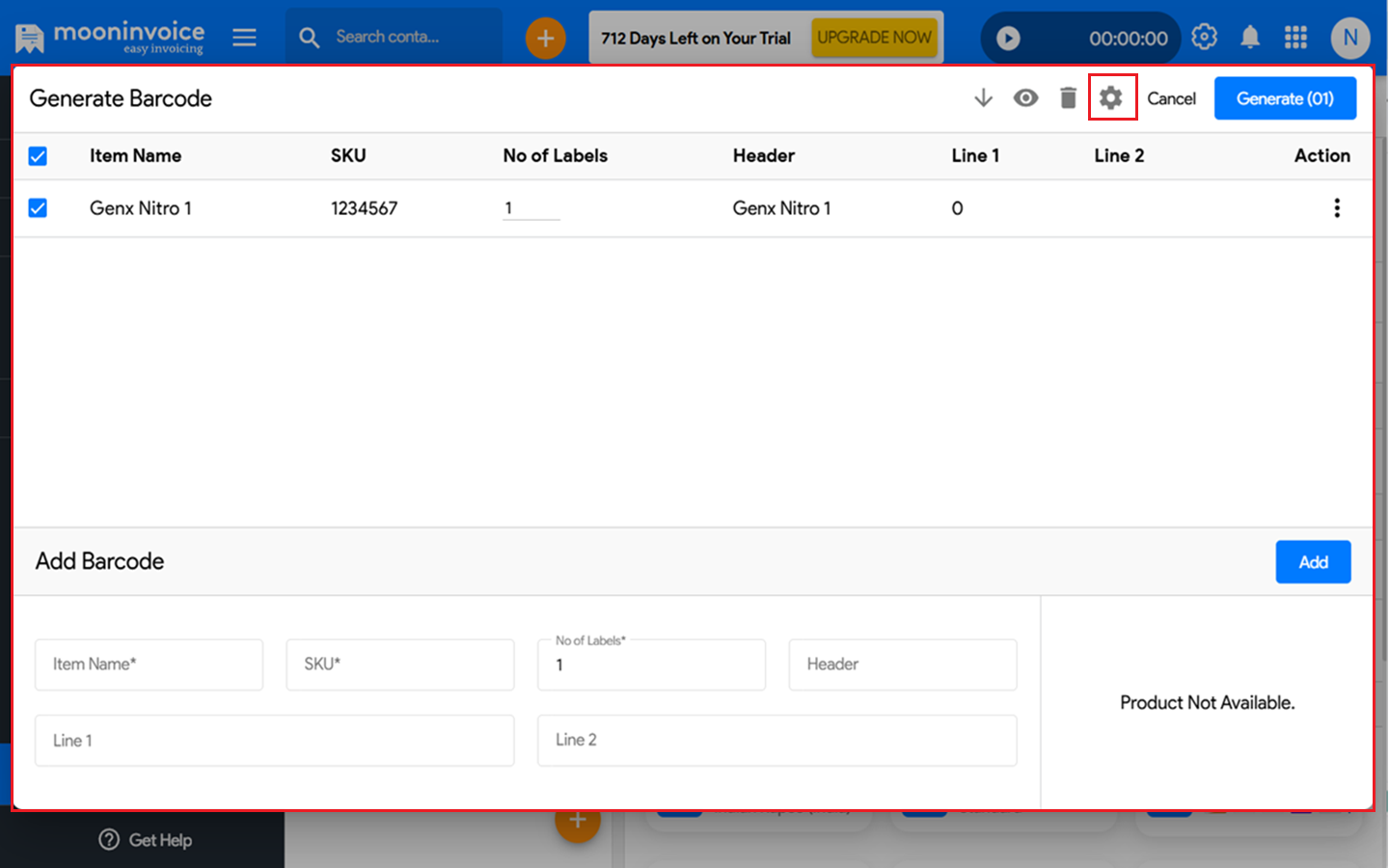

1. Click the Settings icon on the Generate Barcode screen.
2. Select Configure Barcode.

--------------------------------

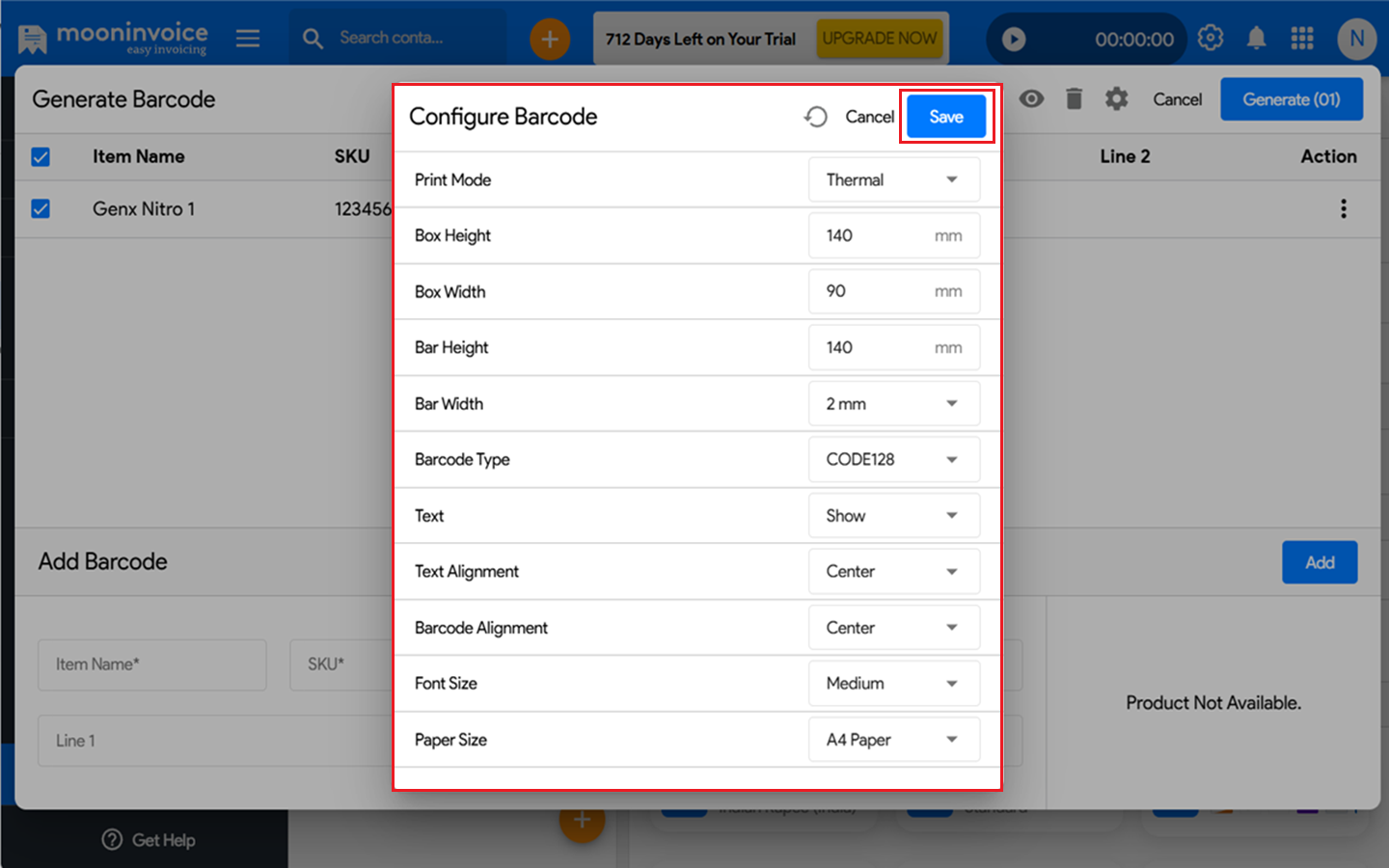

Step 3: Configure Barcode Settings

1. Update the barcode settings according to your requirements.
2. Available settings include:

• Print Mode
• Box Height
• Box Width

Bar Height

• Bar Width
• Barcode Type
• Text Visibility
• Text Alignment
• Barcode Alignment
• Font Size
• Paper Size

3. After updating the settings, click Save.

---------------------------------

Important Notes

• Ensure the product contains a valid SKU before generating a barcode.
• Barcode output may vary based on the selected barcode type and paper size.
• Review the barcode preview before printing.

--------------------------------

Expected Result

After completing these steps:

• A barcode is generated for the selected product.
• The barcode can be previewed, printed, or downloaded.
• Barcode settings are saved and applied according to the selected configuration.
